Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

大画像 : Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

商品の詳細:

起源の場所:	中国
ブランド名:	HR
証明:	CE
モデル番号:	VMC 1160

お支払配送条件:

最小注文数量:	1
価格:	22000$-28000$ per one set
パッケージの詳細:	木製パッケージ
受渡し時間:	15-30 日後
支払条件:	L/C、D/A、D/P、T/T、ウエスタンユニオン、MoneyGram、貿易保証
供給の能力:	月額200円

連絡先

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

説明

名前:	2022 New Design 5 Axis VMC1160垂直機械センター	軸の数:	5
機械加工能力:	中程度	スピンドル速度の範囲（rpm）:	8000～12000
スピンドル数:	シングル	スピンドルテーパー:	BT40
定位精度 (mm):	±0005	繰り返し可能性 (X/Y/Z) (mm):	±0.002
ハイライト:	Vertical CNC milling machine VMC1160 , CNC machining center factory direct , VMC1160 vertical milling center price

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	6800	8000	12000

STANDARD CONFIGURATION:

KND2000MF3i Control System 2. Taiwan BT40-8000 spindle.
Taiwan 16 tools ATC
Taiwan HIWIN three axis linear guideway
Taiwan Hiwin ball screw.
Work Lamp.
Full Enclosure Machine Guard.

OPTIONAL CONFIGURATION:

Siemens Fanuc Syntec KND Mitusbishi GUNT. 2. 16T/ 24T arm type tool changer.
Chain type chip conveyor.
4th axis and 5th axis.
Spindle oil cooler.
Coolant through spindle.
Renishaw probe for workpiece and tool.
10000RPM/ 12000RPM spindle.

Important note:

1. Please confirm your local voltage with our sales staff before ordering.

2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

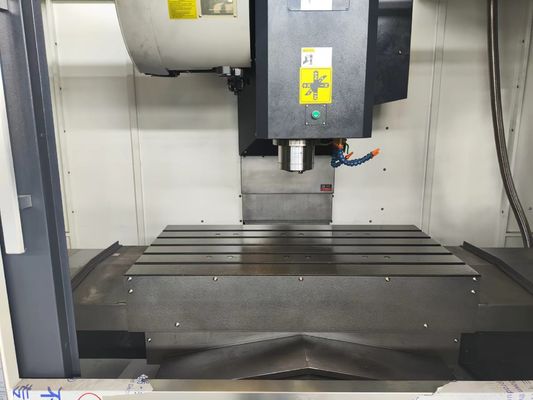

Product DescriptionVMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.

Product Advantages

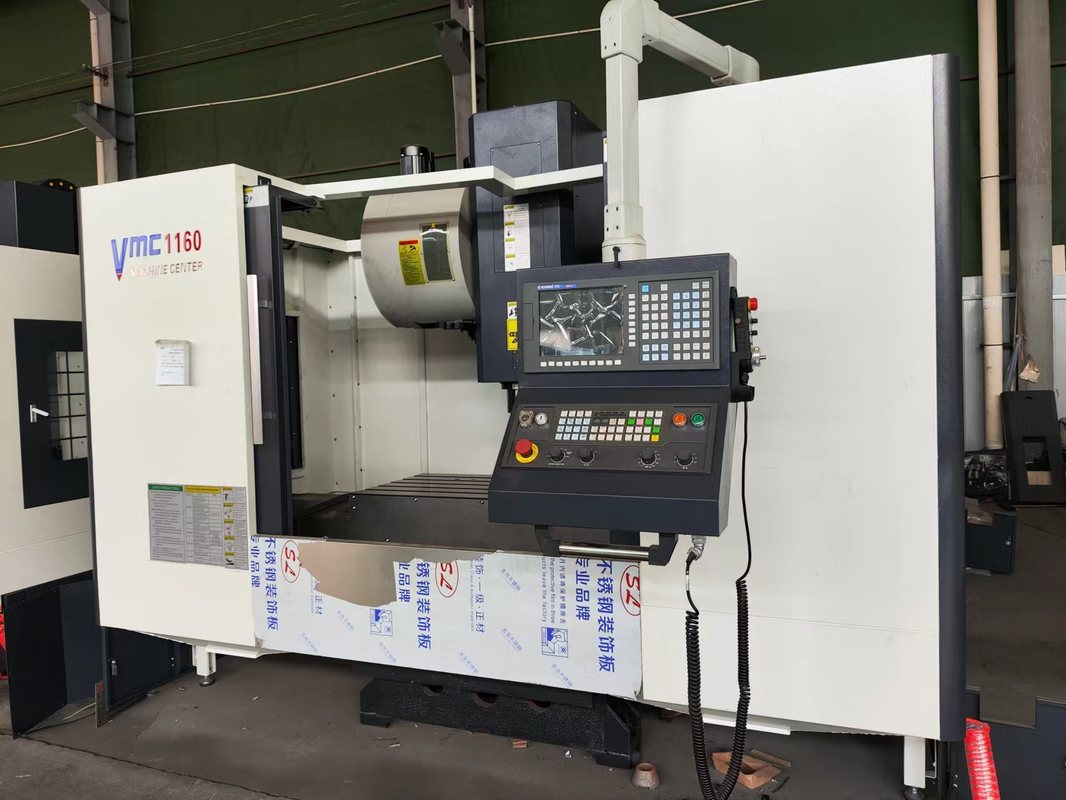

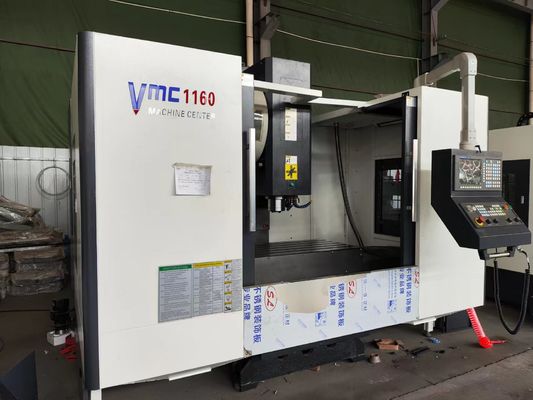

The advantages of Machining center vmc 1160

The main parts of machine tool 1160 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal lost ructure.

Machining center 1160 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal lographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.

The machining center 1160 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.

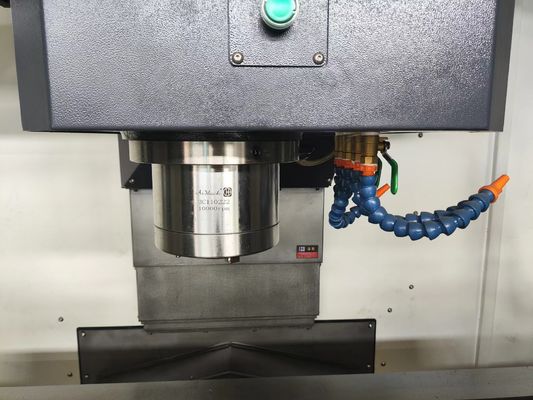

Machining center 1160 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine

tool.

Application Example

This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing

requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.

Certifications

FAQ

1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.

4. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
