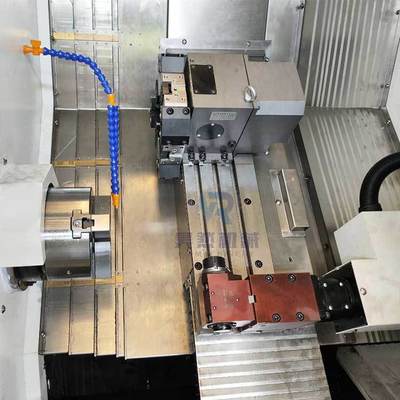

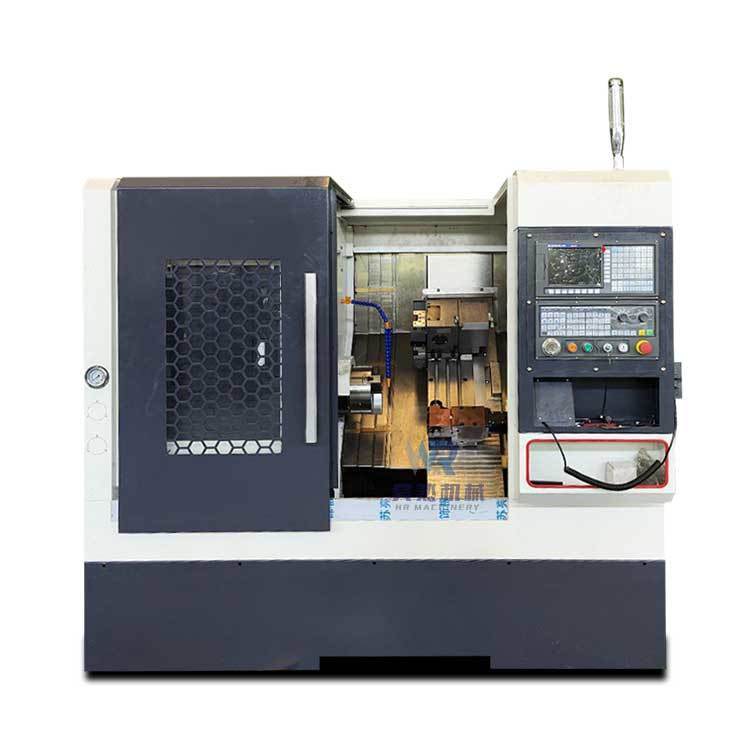

Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine

Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine

大画像 :  Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine

商品の詳細:
起源の場所: 中国
ブランド名: HR
証明: CE
モデル番号: TCK40
お支払配送条件:
最小注文数量: 1セット
価格: 13000USD
パッケージの詳細: 標準パッケージの構成
受渡し時間: 30営業日
支払条件: T/T,D/P,D/A,L/C
供給の能力: 1か月あたり50ユニット
連絡先

Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine

説明
制御システム: CNC アプリケーション: 鋼構造
処理型: CNC旋盤Mahcineの回転 機械のスタイル: 横の旋盤機械
機械モデル: TCK40 小回転機 スピードフィード: 28/28m/min
旋盤マシン: CNCの旋盤機械 ツールタイプ: 塔
出荷: 海で 電圧: 380V,3FAZE 380V 50HZ
自動グレード: 自動 パワー（w）: 4KW7.5kw
状態: 新しい マックス。スイング直径: 400mm,320mm
ハイライト:

Slant Bed CNC Lathe Machine

,

Hydraulic Chuck Turning Lathe

,

TCK40 CNC Turning Machine

TCK40 45 degree Slant Bed CNC turning center lathe for bar feeder
Product Introduction
The TCK40 series multifunctional CNC lathe is a high-speed precision CNC machining equipment produced by our company with the introduction of Japanese technology. The main supporting components are all products from well-known domestic and foreign manufacturers, and the key parts are all completed by imported precision pentahedral machining centers to ensure manufacturing accuracy
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 0
model
tCK40
Max swing over bed Dia.(mm)
Φ450
Maximum cutting diameter(mm)
Φ120
Max cutting length(mm)
335
X axis travel(mm)
900
Z axis travel(mm)
335
X, axis feed speed(mm/min)
24000
Z axis feed speed(mm/min)
24000
handwheel(mm)
0.001/0.01/0.1
X, Z feed speed(mm/min)
0~5000
X, Z manual feed speed(mm/min)
0~1260
Xaxis repeated positioning accuracy(mm)
0.005
X axis positioning accuracy(mm)
0.01
Z axis repeated positioning accuracy(mm)
0.006
Z axis positioning accuracy(mm)
0.015
Spindle speed(rpm)
35-3000
Spindle maximum torque(N.m)
35
Spindle nose
A2-5(OptionalA2-6)
Spindle bore Dia(mm)
Φ52
Hydraulic chuck through hole diameter(mm)
Φ40
Chuck
6”(Optional8”)
No.of tool holder
3 tool rack
Tool change time(s)
0.25
Tools size(mm)
20×20
Boring tool size(mm)
Φ25
Main motor(kw)
5.5 (4500rpm)
Main motor torque(N.m)
35
X-axis feed motor power(kw)
1.5
X-axis feed motor torque(N.m)
6
Z-axis feed motor power(kw)
1.5
Z-axis feed motor torque(N.m)
6
coolant capacity(L)
200
Motor type(1HP)(kw)
0.125
Machine weight(kg)
1600
Details Images
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 1

Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Intelligent distribution board The protective switchgear is equipped with intelligent chips and fault code display, making it easy to quickly read and diagnose faults.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 2
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 3
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 4
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
Slant Bed Tck40 Hydraulic Chuck Cnc Turning Lathe Machine 5
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
