商品の詳細:
|
| 保証: | 1年 | 重さ: | 13000kg |
|---|---|---|---|
| 状態: | 新しい | タイプ: | 垂直 |
| 提供されるアフターセールスサービス: | 海外で機械にサービスを提供できるエンジニア | 電圧: | 380V 50Hz |
| パワー（w）: | 18.5 kW | マシンタイプ: | 中国メーカー マシニング センター cnc 垂直プロセス センター |
| スピンドル: | 高速と精度 | スピンドルテーパー: | B50 |
| 製品名: | 精密海外サービス 3軸CNC立形マシニングセンターの価格 | スピンドル速度: | 6000 rpm |
| 案内面: | 線形案内面 | 色: | カスタムメイド |
| ハイライト: | VMC1580 CNC vertical machining center,CNC milling machine with high precision,industrial CNC machining center with warranty |
||

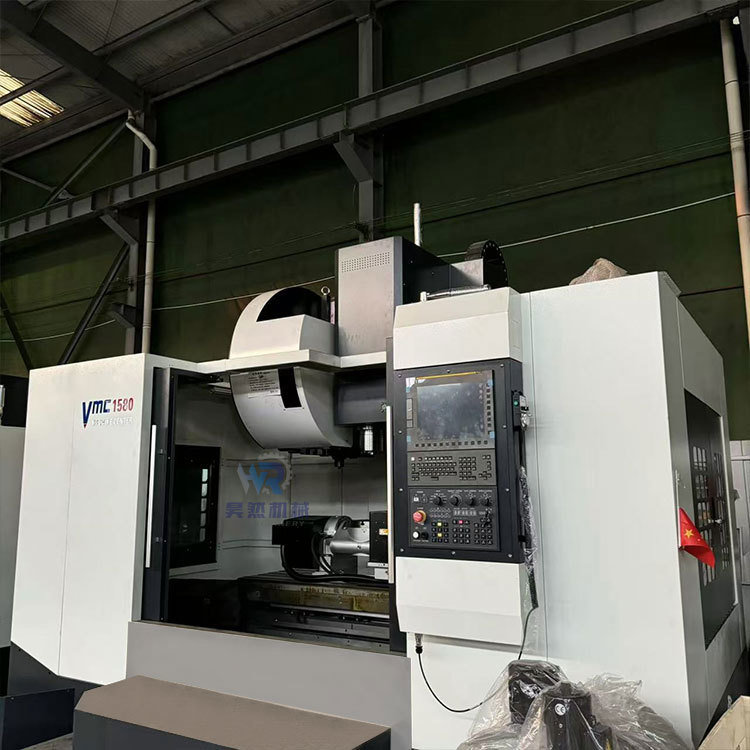

Vmc1580 vertical machining centre Vmc1580 vertical machining centre
Main configuration:
| Specification | unit | ||||
| VMC1580 | |||||
| Table | Size | 1700*800 | mm | ||
| Max. Table Load | 1500 | kg | |||
| T-slot No. and size | 5-22x150 | mm | |||
|
processing Scope |
Table Travel (X) | 1500 | mm | ||
| Table Travel (Y) | 800 | mm | |||
| Table Travel (Z) | 700 | mm | |||
| Spindle end face to Work surface distance | Max. | 840 | mm | ||
| Min. | 170 | mm | |||
| Distance from Spindle center to Z Axes rail surface | 810 | mm | |||
| Spindle | Spindle Taper | SK50 | |||
| Range of Spindle Speed | 6000 | r/min | |||
| Spindle Motor Power | 18.5 | kW | |||
| Move | Fast-moving | X Axes | 24 | m/min | |
| Y Axes | 24 | ||||
| Z Axes | 24 | ||||
| Moving speed | 1-10000 | mm/min | |||

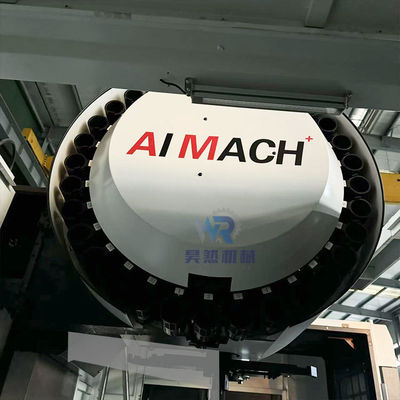

| Tool Magazine | Tool Magazine Capacity | 24 | |||
| Min. Time of Tool Change | 2.5 | s | |||
| Positioning Accuracy | Accuracy testing standard | JISB6336-4:2000/ GB/T18400.4-2010 | |||
| X/Y/Z Axes | 0.008 | mm | |||
| X/Y/Z Axe Repeatability | 0.005 | mm | |||
| Dimension(L*W*H) | 4300*3200*3100 | mm | |||
| Weight | 13000 | kg | |||
| Specification | unit | ||||
Product application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
