商品の詳細:
|
| 保証: | 1年 | 重さ: | 3000kg |
|---|---|---|---|
| 寸法（l*w*h）: | 2700*2150*2600 | 状態: | 新しい |
| タイプ: | 垂直 | 提供されるアフターセールスサービス: | 海外での機械のサービス、オンラインサポートに利用できるエンジニア |
| 電圧: | 380V 50HZ 顧客の要求 | パワー（w）: | 5.5kw |
| マシンタイプ: | 中国メーカー マシニング センター cnc 垂直プロセス センター | スピンドル: | 台湾10000rpmの紡錘 |

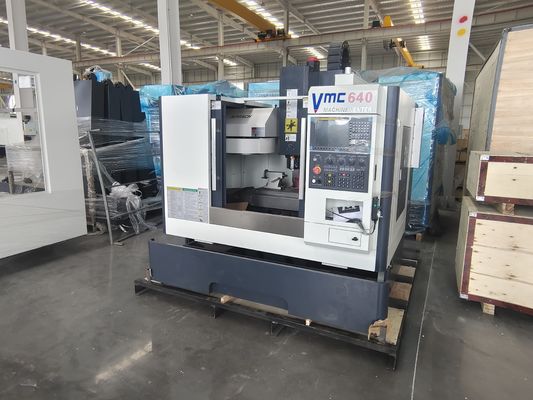

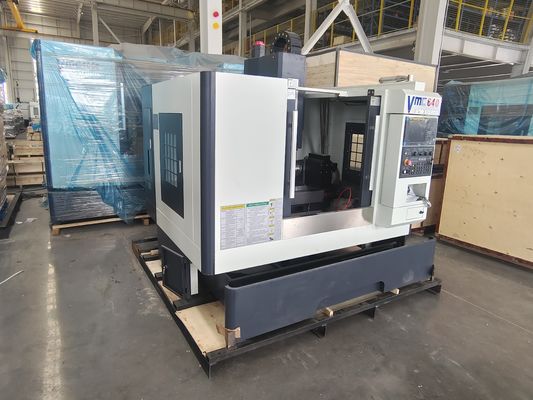

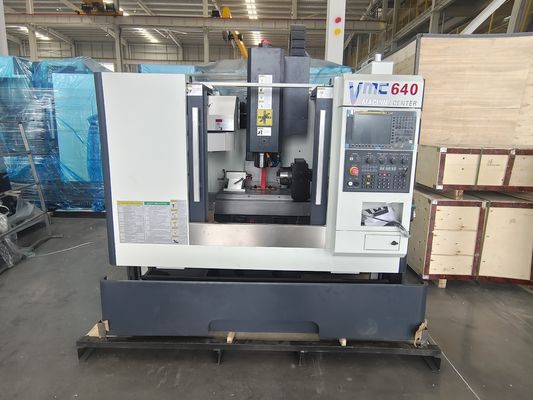

| スピンドルテーパー: | BT40 | 製品名: | 小型金属模具加工 CNC垂直加工センター VMC640L |
| 案内面: | X,Y線形ガイドライン | 色: | カスタムメイド |
| ハイライト: | 10000rpm spindle CNC Vertical Machining Center,16 ATC tool magazine VMC640 CNC Milling Machine,±0.005mm precision Vertical Machining Center |
||
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
| Specifications | VMC640 | ||
| Work table | Area of work table | 800×300mm | |
| Load capacity | 400 kg | ||
| spindle | Motor power | 5.5kw | |
| Distance between the spindle end and the work surface | 120-670 mm | ||
| Spindle center to column guide rail | 460 mm | ||
| Speed | 12000rpm | ||
| Taper of spindle | BT40 | ||
| Distance of travel | X-Axis | 600 mm | |
| Y-Axis | 400mm | ||
| Z-Axis | 450mm | ||
| Feed | X/Y/Z-axis fast moving | 24/24/18mm(linear guide way) | |
| fast cutting speed mm /min | 1-10000 mm/min | ||
| precision | Positional accuracy | ±0.01 mm | |
| Repeat positional accuracy | ±0.005 mm | ||
| Tools | Tool changer type | 16 ATC tool magazine | |
| Max. tool length | 300mm | ||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||
| Max.tool weight | 8kg | ||
| Tool changing time(tool-to-tool) | 7sec | ||
| Data | Air pressure | 0.6 Mpa | |
| Power Supply | Voltage(V)/frequency (Hz) | 220v three-phase voltage | |
| Total capacity(KVA) | 10 | ||
| Weight | 3000 kg | ||
| Diamention | 2280×2150×2250mm | ||
